Avalanche

Medium Dark Slate, Cloth 40/20/40 Split Bench Seat -Inc: 20% Locking Center Under-Seat Storage, Center Armrest, Cupholder, Storage, 8-Way Power Driver (Includes Power Lumbar) And 2-Way Adjustable Driver/Passenger Headrests

ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20

ORDER CODE 613A

FX4 OFF-ROAD PACKAGE

XLT PREMIUM PACKAGE

SNOW PLOW PREP PACKAGE

POWER-SLIDING REAR-WINDOW W/DEFROST

PLATFORM RUNNING BOARDS

LED ROOF CLEARANCE LIGHTS

TAILGATE STEP & HANDLE

UPFITTER SWITCHES (6)

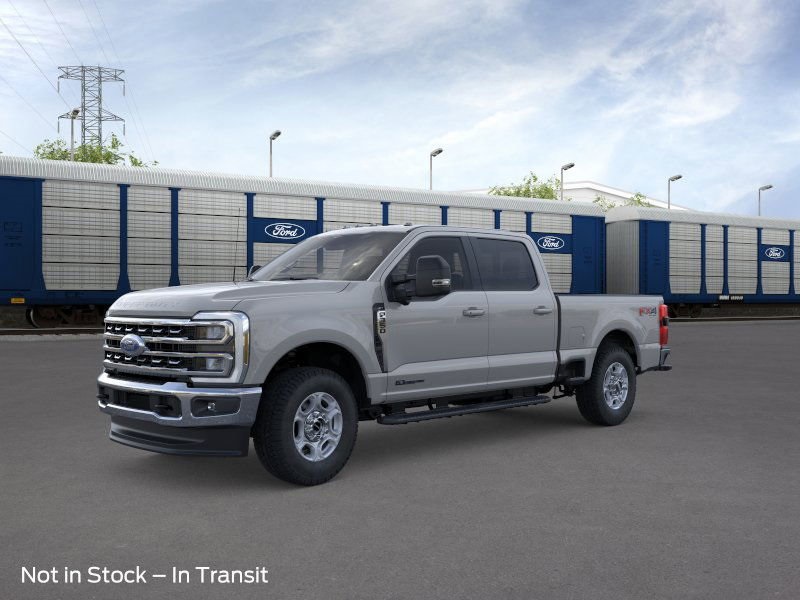

Vehicle Name - Ford Super Duty F-350 SRW

Body Style - SD Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 6665

Gross Axle Wt Rating - Front (lbs) - 5600

Gross Axle Wt Rating - Rear (lbs) - 6780

Curb Weight - Front (lbs) - 3870

Curb Weight - Rear (lbs) - 2738

Gross Vehicle Weight Rating Cap (lbs) - 11499

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Gross Combined Wt Rating (lbs) - 31000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 23100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 2310

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 20500

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 5125

Maximum Trailering Capacity (lbs) - 23100

Engine Order Code - 99T

Engine Type - Intercooled Turbo Diesel V-8

Displacement - 6.7 L/406

Fuel System - Diesel Direct Injection

SAE Net Horsepower @ RPM - 475 @ 2600

SAE Net Torque @ RPM - 1050 @ 1600

Trans Order Code - 44G

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.62

Second Gear Ratio (:1) - 2.92

Third Gear Ratio (:1) - 2.13

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Reverse Ratio (:1) - 4.70

Trans Power Take Off - Yes

Trans PTO Access - Yes

Transfer Case Model - Electronic

Transfer Case Power Take Off - Yes

Cold Cranking Amps @ 0? F (Primary) - 750

Cold Cranking Amps @ 0? F (2nd) - 750

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Maximum Alternator Capacity (amps) - 250 & 150

Engine Oil Cooler - None

Suspension Type - Front - Other

Suspension Type - Rear - Leaf

Spring Capacity - Front (lbs) - 5600

Spring Capacity - Rear (lbs) - 6780

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 6000

Axle Capacity - Rear (lbs) - 7280

Axle Ratio (:1) - Front - 3.31

Axle Ratio (:1) - Rear - 3.31

Front Tire Order Code - TBM

Rear Tire Order Code - TBM

Spare Tire Order Code -

Front Tire Size - LT275/65SR18

Rear Tire Size - LT275/65SR18

Spare Tire Size -

Front Tire Capacity (lbs) - 6830

Rear Tire Capacity (lbs) - 6830

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 612

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 612

Front Wheel Size (in) - 18 X 8

Rear Wheel Size (in) - 18 X 8

Spare Wheel Size (in) -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material -

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 53

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.3

Rear Brake Rotor Diam x Thickness (in) - 14.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 34

Front Head Room (in) - 40.8

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 66.7

Front Hip Room (in) - 62.5

Second Head Room (in) - 40.4

Second Leg Room (in) - 43.6

Second Shoulder Room (in) - 65.9

Second Hip Room (in) - 64.7

Wheelbase (in) - 160

Length, Overall (in) - 250

Width, Max w/o mirrors (in) - 80

Height, Overall (in) - 81.3

Overhang, Front (in) - 38.2

Cab to Axle (in) - 56.1

Ground to Top of Load Floor (in) - 36.9

Ground Clearance, Front (in) - 8.5

Ground Clearance, Rear (in) - 8.5

Cargo Box Length @ Floor (in) - 98.1

Cargo Box Width @ Top, Rear (in) - 66.9

Cargo Box Width @ Floor (in) - 66.9

Cargo Box Width @ Wheelhousings (in) - 50.5

Cargo Box (Area) Height (in) - 21.1

Tailgate Width (in) - 60.5

Cargo Volume (ft?) - 78.5

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - F-Series Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 7.3

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Ford
